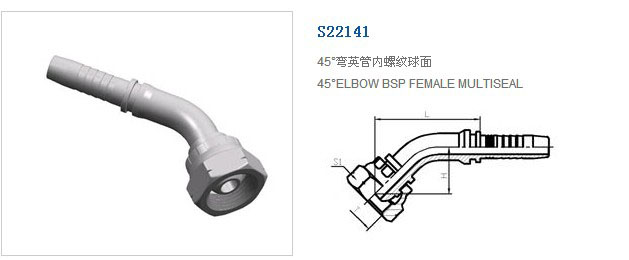

| 代 号 | 螺纹 T | 软 管 HOSE BORE | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公称内径 DN | 标号 DASH | L | H | S1 |
| S22141-02-04 | G1/8＂X28 | 6 | 04 | 43 | 21.6 | 14 |
| S22141-04-04 | G1/4＂X19 | 6 | 04 | 43 | 21.6 | 19 |
| S22141-06-05T | G3/8＂X19 | 8 | 05 | 45.5 | 22 | 22 |
| S22141-06-06 | G3/8＂X19 | 10 | 06 | 49 | 23.3 | 22 |
| S22141-06-08 | G3/8＂X19 | 13 | 08 | 58 | 25.5 | 22 |
| S22141-08-06T | G1/2＂X14 | 10 | 06 | 51 | 25 | 27 |
| S22141-08-08 | G1/2＂X14 | 13 | 08 | 59.5 | 27 | 27 |
| S22141-08-10 | G1/2＂X14 | 16 | 10 | 68 | 28 | 27 |
| S22141-10-08T | G5/8＂X14 | 13 | 08 | 60 | 27.5 | 30 |
| S22141-10-10 | G5/8＂X14 | 16 | 10 | 68.5 | 28.8 | 30 |
| S22141-10-12 | G5/8＂X15 | 19 | 12 | 74.5 | 32 | 30 |
| S22141-12-10T | G3/4＂X14 | 16 | 10 | 65.8 | 26.7 | 32 |
| S22141-12-12 | G3/4＂X14 | 19 | 12 | 80 | 32.2 | 32 |
| S22141-16-12T | G1＂X11 | 19 | 12 | 81.6 | 33 | 41 |
| S22141-16-16 | G1＂X11 | 25 | 16 | 88 | 35.1 | 41 |
| S22141-20-16T | G1.1/4＂X11 | 25 | 16 | 89.5 | 36.5 | 50 |
| S22141-20-20 | G1.1/4＂X11 | 32 | 20 | 101.5 | 40.8 | 50 |
| S22141-24-20T | G1.1/2＂X11 | 32 | 20 | 104 | 43 | 55 |
| S22141-24-24 | G1.1/2＂X11 | 38 | 24 | 117.8 | 46.8 | 55 |
| S22141-32-24T | G2＂X11 | 38 | 24 | 120 | 51 | 70 |
| S22141-32-32 | G2＂X11 | 51 | 32 | 138 | 57 | 70 |
