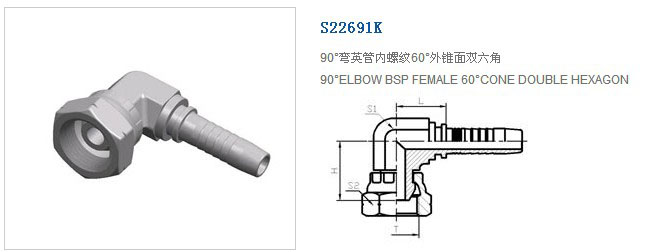

| 代号 | 螺纹 T | 胶管 HOSE BORE | 尺寸 DIMENSIONS | ||||
|---|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公称内径 DN | 标号 DASH | L | H | S1 | S2 |
| S22691K-04-04 | G1/4＂X19 | 6 | 04 | 17.5 | 22 | 14 | 19 |
| S22691K-06-04 | G3/8＂X19 | 6 | 04 | 20 | 24 | 17 | 22 |
| S22691K-06-05 | G3/8＂X19 | 8 | 05 | 20 | 24 | 17 | 22 |
| S22691K-06-06 | G3/8＂X19 | 10 | 06 | 20 | 24 | 17 | 22 |
| S22691K-08-06 | G1/2＂X14 | 10 | 06 | 23.5 | 26.5 | 19 | 27 |
| S22691K-08-08 | G1/2＂X14 | 13 | 08 | 23.5 | 28.5 | 19 | 27 |
| S22691K-10-10 | G5/8＂X14 | 16 | 10 | 25 | 29.5 | 22 | 30 |
| S22691K-12-12 | G3/4＂X14 | 19 | 12 | 27.5 | 36 | 27 | 32 |
| S22691K-16-16 | G1＂X11 | 25 | 16 | 32.5 | 38.1 | 33 | 41 |
