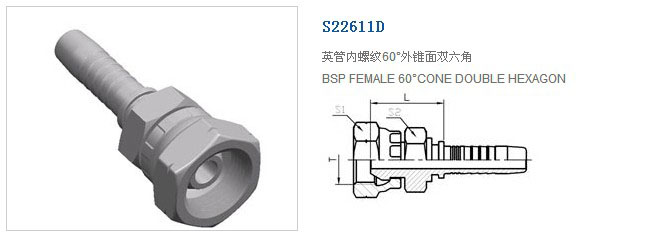

| 代 号 | 螺纹 T | 软 管 HOSE BORE | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公称内径 DN | 标号 DASH | L | S1 | S2 |
| S22611D-04-04 | G1/4＂X19 | 6 | 04 | 23.5 | 19 | 19 |
| S22611D-06-06 | G3/8＂X19 | 10 | 06 | 26.5 | 22 | 22 |
| S22611D-08-08 | G1/2＂X14 | 13 | 08 | 31 | 27 | 27 |
| S22611D-10-08 | G5/8＂X14 | 13 | 08 | 32 | 30 | 30 |
| S22611D-12-08 | G3/4＂X14 | 13 | 08 | 33 | 32 | 32 |
| S22611D-12-12 | G3/4＂X14 | 19 | 12 | 34 | 32 | 32 |
| S22611D-16-16 | G1＂X11 | 25 | 16 | 35.5 | 41 | 41 |
| S22611D-20-20 | G1.1/4＂X11 | 32 | 20 | 43.5 | 50 | 50 |
