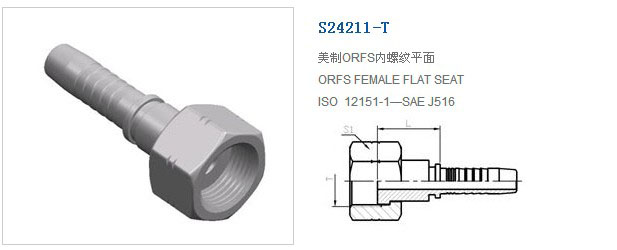

| 代 号 | 螺纹 T | 软 管 HOSE BORE | 尺寸 DIMENSIONS | ||
|---|---|---|---|---|---|
| PART NO. | THREAD T | 公称内径DN | 标号 DASH | L | S1 |
| S24211-04-04 | 9/16＂X18 | 6 | 04 | 22.5 | 17 |
| S24211-06-04T | 11/16＂X16 | 6 | 04 | 22.5 | 22 |
| S24211-06-05T | 11/16＂X16 | 8 | 05 | 23.5 | 22 |
| S24211-06-06 | 11/16＂X16 | 10 | 06 | 25.5 | 22 |
| S24211-08-06T | 13/16＂X16 | 10 | 06 | 25 | 24 |
| S24211-08-08 | 13/16＂X16 | 13 | 08 | 28.5 | 24 |
| S24211-08-10 | 13/16＂X16 | 16 | 10 | 29.5 | 24 |
| S24211-10-08T | 1＂X14 | 13 | 08 | 29 | 30 |
| S24211-10-10 | 1＂X14 | 16 | 10 | 33.5 | 30 |
| S24211-12-08T | 1.3/16＂X12 | 13 | 08 | 31 | 36 |
| S24211-12-10T | 1.3/16＂X12 | 16 | 10 | 32 | 36 |
| S24211-12-12 | 1.3/16＂X12 | 19 | 12 | 35 | 36 |
| S24211-16-12T | 1.7/16＂X12 | 19 | 12 | 34 | 41 |
| S24211-16-16T | 1.7/16＂X12 | 25 | 16 | 35 | 41 |
| S24211-20-16T | 1.11/16＂X12 | 25 | 16 | 35 | 50 |
| S24211-20-20 | 1.11/16＂X12 | 32 | 20 | 40 | 50 |
| S24211-24-20T | 2＂X12 | 32 | 20 | 36.5 | 60 |
| S24211-24-24T | 2＂X12 | 38 | 24 | 36.5 | 60 |
