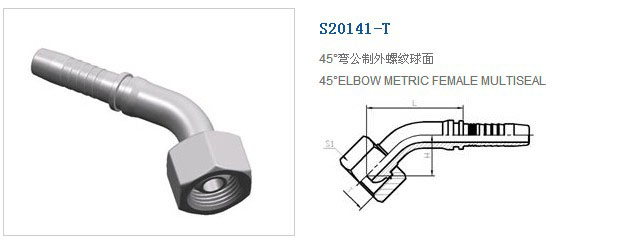

| 代号 | 螺纹 T | 软管 HOSE BORE | 尺寸 DIMENSIONS | |||
|---|---|---|---|---|---|---|
| PART NO. | THREAD T | 公称内径 DN | 标号 DASH | L | H | S1 |
| S20141-12-04 | M12X1.5 | 6 | 04 | 39.5 | 16.5 | 17 |
| S20141-14-04T | M14X1.5 | 6 | 04 | 43 | 18.3 | 17 |
| S20141-14-05 | M14X1.5 | 8 | 05 | 46 | 22.2 | 19 |
| S20141-16-04T | M16X1.5 | 6 | 04 | 42.5 | 21.4 | 19 |
| S20141-16-05T | M16X1.5 | 8 | 05 | 44.5 | 19.5 | 19 |
| S20141-16-06 | M16X1.5 | 10 | 06 | 49 | 24 | 22 |
| S20141-18-06T | M18X1.5 | 10 | 06 | 50 | 24 | 22 |
| S20141-18-08 | M18X1.5 | 13 | 08 | 58.5 | 28.8 | 24 |
| S20141-22-08T | M22X1.5 | 13 | 08 | 60 | 27.2 | 27 |
| S20141-24-10 | M24X1.5 | 16 | 10 | 67 | 27 | 30 |
| S20141-27-10T | M27X1.5 | 16 | 10 | 69 | 29.6 | 32 |
| S20141-30-12T | M30X1.5 | 19 | 12 | 76.5 | 33.7 | 36 |
| S20141-39-16T | M39X2 | 25 | 16 | 86 | 33.6 | 46 |
| S20141-45-20T | M45X2 | 32 | 20 | 99 | 38.4 | 50 |
| S20141-52-24T | M52X2 | 38 | 24 | 114 | 44.6 | 60 |
