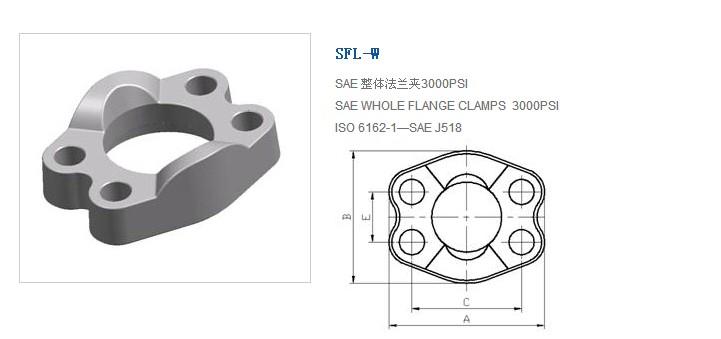

| 代号 | 法兰型号 | 尺寸 DIMENSIONS | 配螺栓 | 压力等级 MPa | ||||
|---|---|---|---|---|---|---|---|---|
| PART NO. | FLANGE SIZE | A | B | C | E | BOLT | ||
| SFL-08W | 1/2＂ | 54 | 46 | 38.1 | 17.48 | M8X25 | 34.5 | |
| SFL-08WUN | 1/2＂ | 54 | 46 | 38.1 | 17.48 | 5/16＂-18X1.1/4＂ | ||
| SFL-12W | 3/4＂ | 65 | 52 | 47.63 | 22.23 | M10X30 | ||
| SFL-12WUN | 3/4＂ | 65 | 52 | 47.63 | 22.23 | 3/8＂-16X1.1/4＂ | ||
| SFL-16W | 1＂ | 70 | 59 | 52.37 | 26.19 | M10X30 | ||
| SFL-16WUN | 1＂ | 70 | 59 | 52.37 | 26.19 | 3/8＂-16X1.1/4＂ | ||
| SFL-20W | 1.1/4＂ | 79 | 73 | 58.72 | 30.18 | M10X30 | 276 | |
| SFL-20WUN | 1.1/4＂ | 79 | 73 | 58.72 | 30.18 | 7/16＂-14X1.1/2＂ | ||
| SFL-24W | 1.1/2＂ | 94 | 83 | 69.85 | 35.71 | M12X35 | 20.7 | |
| SFL-24WUN | 1.1/2＂ | 94 | 83 | 69.85 | 35.71 | 1/2＂-13X1.1/2＂ | ||
| SFL-32W | 2＂ | 102 | 97 | 77.77 | 42.88 | M12X35 | ||
| SFL-32WUN | 2＂ | 102 | 97 | 77.77 | 42.88 | 1/2＂-13X1.1/2＂ | ||
| SFL-40W | 2.1/2＂ | 114 | 109 | 88.9 | 50.8 | M12X44 | 17.2 | |
| SFL-40WUN | 2.1/2＂ | 114 | 109 | 88.9 | 50.8 | 1/2＂-13X1.3/4＂ | ||
| SFL-48W | 3＂ | 135 | 131 | 106.38 | 61.93 | M16X44 | 13.8 | |
| SFL-48WUN | 3＂ | 135 | 131 | 106.38 | 61.93 | 5/8＂-11X1.3/4＂ | ||
| SFL-56W | 3.1/2＂ | 152 | 140 | 120.65 | 69.85 | M16X51 | 3.4 | |
| SFL-56WUN | 3.1/2＂ | 152 | 140 | 120.65 | 69.85 | 5/8＂-11X2＂ | ||
| SFL-64W | 4＂ | 162 | 152 | 130.18 | 77.77 | M16X51 | ||
| SFL-64WUN | 4＂ | 162 | 152 | 130.18 | 77.77 | 5/8＂-11X2＂ | ||
