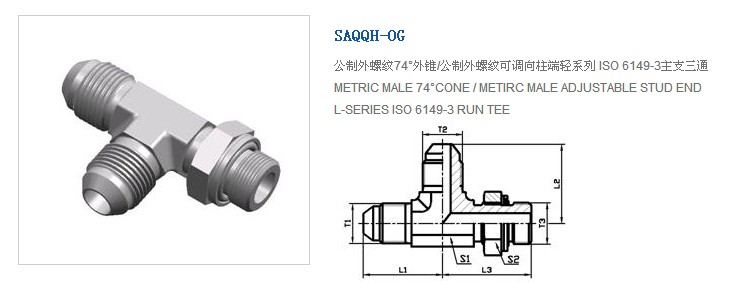

| 代号 RAPT NO. | 螺纹 ETHREAD | 尺寸 DIMENSIONS | 工作压力MPa | ||||||
|---|---|---|---|---|---|---|---|---|---|
| T1 | T2 | T3 | L1 | L2 | L3 | S1 | S2 | ||
| SAQQH-14-14-12OG | M14X1.5 | M14X1.5 | M12X1.5 | 28.5 | 28.5 | 31 | 14 | 17 | 31.5 |
| SAQQH-16-16-14OG | M16X1.5 | M16X1.5 | M14X1.5 | 30.5 | 30.5 | 31 | 16 | 19 | 25 |
| SAQQH-18-18-16OG | M18X1.5 | M18X1.5 | M16X1.5 | 31.5 | 31.5 | 33.5 | 19 | 22 | |
| SAQQH-22-22-18OG | M22X1.5 | M22X1.5 | M18X1.5 | 34 | 34 | 37.5 | 22 | 24 | 20 |
| SAQQH-27-27-22OG | M27X1.5 | M27X1.5 | M22X1.5 | 37.5 | 37.5 | 41.5 | 27 | 27 | |
| SAQQH-30-30-27OG | M30X1.5 | M30X1.5 | M27X2 | 42.8 | 42.8 | 48.5 | 30 | 32 | 16 |
| SAQQH-33-33-27OG | M33X2 | M33X2 | M27X2 | 45.5 | 45.5 | 48.5 | 33 | 32 | |
| SAQQH-36-36-33OG | M36X2 | M36X2 | M33X2 | 47 | 47 | 51.5 | 36 | 41 | |
| SAQQH-39-39-33OG | M39X2 | M39X2 | M33X2 | 50 | 50 | 51.5 | 41 | 41 | 12.5 |
| SAQQH-45-45-42OG | M45X2 | M45X2 | M42X2 | 54 | 54 | 56.5 | 46 | 50 | 10 |
