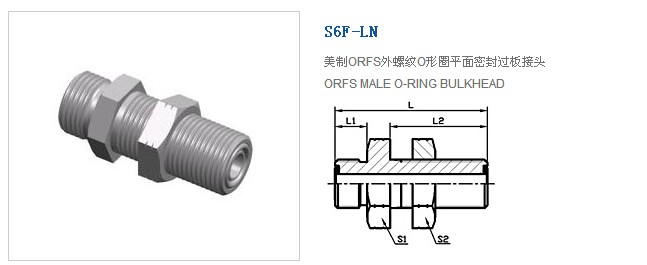

| 代号 PART NO. | 螺纹 THREAD | 尺寸 DIMENSIONS | 重量（g) | 工作压力MPa | |||||
|---|---|---|---|---|---|---|---|---|---|
| T1 | T2 | L1 | L2 | L | S1 | S2 | |||
| S6F-04LN | 9/16＂X18 | 9/16＂X18 | 10 | 31.5 | 48 | 22 | 22 | 75 | 63 |
| S6F-06LN | 11/16＂X16 | 11/16＂X16 | 11 | 34 | 53 | 27 | 27 | 124 | |
| S6F-08LN | 13/16＂X16 | 13/16＂X16 | 13 | 36.5 | 58.5 | 30 | 30 | 169 | |
| S6F-10LN | 1＂X14 | 1＂X14 | 15.5 | 40.5 | 66.5 | 36 | 36 | 281 | 40 |
| S6F-12LN | 1.3/16＂X12 | 1.3/16＂X12 | 17 | 41.5 | 69 | 41 | 41 | 365 | |
| S6F-16LN | 1.7/16＂X12 | 1.7/16＂X12 | 17.5 | 42 | 70 | 46 | 46 | 494 | |
| S6F-20LN | 1.11/16＂X12 | 1.11/16＂X12 | 17.5 | 42 | 70 | 50 | 50 | 587 | 25 |
| S6F-24LN | 2＂X12 | 2＂X12 | 17.5 | 42 | 70 | 60 | 60 | 810 | |
