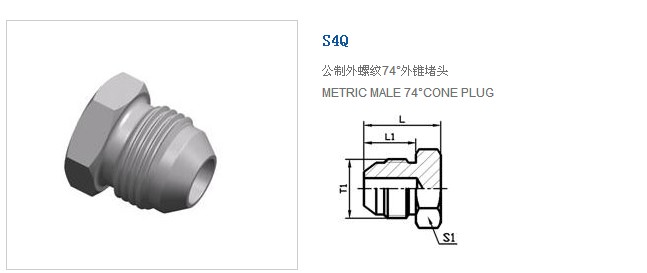

| 代号 RAPT NO. | 螺纹 ETHREAD | 尺寸 DIMENSIONS | 工作压力MPa | ||
|---|---|---|---|---|---|
| T1 | L1 | L | S1 | ||
| S4Q-10 | M10X1 | 12.5 | 18 | 12 | 35 |
| S4Q-12 | M12X1.5 | 16 | 21.5 | 14 | |
| S4Q-14 | M14X1.5 | 18 | 23 | 17 | |
| S4Q-16 | M16X1.5 | 19 | 24 | 17 | 25 |
| S4Q-18 | M18X1.5 | 19 | 24 | 19 | |
| S4Q-22 | M22X1.5 | 19.5 | 27.5 | 24 | 20 |
| S4Q-24 | M24X1.5 | 20 | 30 | 27 | |
| S4Q-27 | M27X1.5 | 20.5 | 30 | 30 | |
| S4Q-30 | M30X1.5 | 23 | 34 | 32 | |
| S4Q-30E | M30X2 | 26 | 37 | 32 | 16 |
| S4Q-33 | M33X2 | 26 | 37 | 34 | |
| S4Q-36 | M36X2 | 26 | 38 | 41 | |
| S4Q-39 | M39X2 | 27.5 | 39 | 41 | 12.5 |
| S4Q-42 | M42X2 | 28.5 | 41.5 | 46 | |
| S4Q-45 | M45X2 | 28.5 | 41.5 | 46 | 10 |
