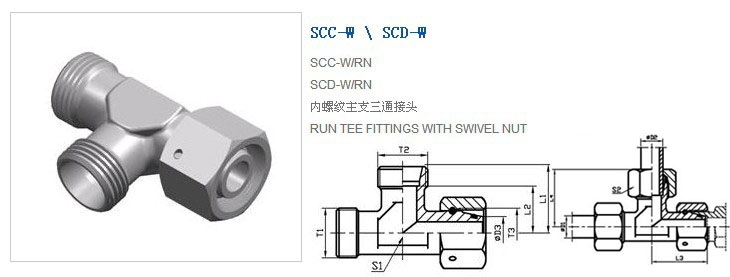

| 系列 | 代号 RAPT NO. | 螺纹 THREAD | 管子外径 TUBE O.D | 尺寸 DIMENSIONS | 重量 克/件 | 工作压力 (Bar) | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| T1 | T2 | D1、D2 | L1 | L2 | L3 | S1 | S2、S3 | ||||
| L | S2C-12W | M12X1.5 | M12X1.5 | 06 | 36 | 43 | 51 | 12 | 14 | 33 | 500 |
| S2C-14W | M14X1.5 | M14X1.5 | 08 | 36 | 43 | 51 | 14 | 17 | 46 | 500 | |
| S2C-16W | M16X1.5 | M16X1.5 | 10 | 36 | 43 | 51 | 17 | 19 | 60 | 500 | |
| S2C-18W | M18X1.5 | M18X1.5 | 12 | 36 | 43 | 51 | 19 | 22 | 75 | 400 | |
| S2C-22W | M22X1.5 | M22X1.5 | 15 | 36 | 43 | 51 | 24 | 27 | 118 | 400 | |
| S2C-26W | M26X1.5 | M26X1.5 | 18 | 36 | 43.5 | 52 | 27 | 32 | 153 | 400 | |
| S2C-30W | M30X2 | M30X2 | 22 | 40 | 47.5 | 56 | 32 | 36 | 210 | 250 | |
| S2C-36W | M36X2 | M36X2 | 28 | 40 | 47.5 | 57 | 41 | 41 | 279 | 250 | |
| S2C-45W | M45X2 | M45X2 | 35 | 50 | 60.5 | 72 | 46 | 50 | 468 | 250 | |
| S2C-52W | M52X2 | M52X2 | 42 | 60 | 71 | 83 | 55 | 60 | 802 | 250 | |
| S | S2D-14W | M14X1.5 | M14X1.5 | 06 | 36 | 43 | 51 | 14 | 17 | 48 | 800 |
| S2D-16W | M16X1.5 | M16X1.5 | 08 | 36 | 43 | 51 | 17 | 19 | 64 | 800 | |
| S2D-18W | M18X1.5 | M18X1.5 | 10 | 36 | 43.5 | 52 | 19 | 22 | 81 | 800 | |
| S2D-20W | M20X1.5 | M20X1.5 | 12 | 36 | 43.5 | 52 | 22 | 24 | 97 | 630 | |
| S2D-22W | M22X1.5 | M22X1.5 | 14 | 40 | 48 | 58 | 24 | 27 | 133 | 630 | |
| S2D-24W | M24X1.5 | M24X1.5 | 16 | 40 | 48.5 | 58 | 27 | 30 | 166 | 630 | |
| S2D-30W | M30X2 | M30X2 | 20 | 46 | 56.5 | 68 | 32 | 36 | 265 | 420 | |
| S2D-36W | M36X2 | M36X2 | 25 | 50 | 62 | 74 | 41 | 46 | 466 | 420 | |
| S2D-42W | M42X2 | M42X2 | 30 | 56 | 69.5 | 83 | 46 | 50 | 601 | 420 | |
| S2D-52W | M52X2 | M52X2 | 38 | 60 | 76 | 91 | 55 | 60 | 871 | 420 | |
