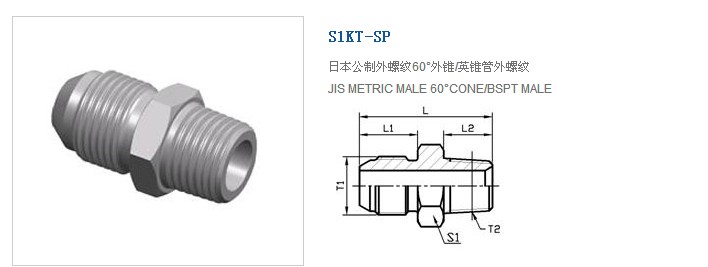

| 代号RAPT NO. | 螺纹 ETHREAD | 尺寸 DIMENSIONS | 工作压力MPa | ||||
|---|---|---|---|---|---|---|---|
| T1 | T2 | L1 | L2 | L | S1 | ||
| S1KT-14-04SP | M14X1.5 | R1/4＂X29 | 17 | 13 | 37.5 | 17 | 34.5 |
| S1KT-14-06SP | M14X1.5 | R3/8＂X19 | 17 | 15 | 38 | 19 | |
| S1KT-16-06SP | M16X1.5 | R3/8＂X19 | 18 | 15 | 39 | 19 | |
| S1KT-18-06SP | M18X1.5 | R3/8＂X19 | 18 | 15 | 39 | 19 | |
| S1KT-20-06SP | M20X1.5 | R3/8＂X19 | 20 | 15 | 43 | 22 | |
| S1KT-22-06SP | M22X1.5 | R3/8＂X19 | 20 | 15 | 43 | 24 | |
| S1KT-22-08SP | M22X1.5 | R1/2＂X14 | 20 | 18 | 48 | 24 | |
| S1KT-24-08SP | M24X1.5 | R1/2＂X14 | 21.5 | 18 | 51.5 | 27 | 27.5 |
| S1KT-24-12SP | M24X1.5 | R3/4＂X14 | 21.5 | 20 | 51.5 | 30 | |
| S1KT-30-12SP | M30X1.5 | R3/4＂X14 | 26 | 20 | 57 | 32 | 20.5 |
| S1KT-33-16SP | M33X1.5 | R1＂X11 | 30 | 22 | 66.5 | 36 | |
| S1KT-36-20SP | M36X1.5 | R1.1/4＂X11 | 33 | 25 | 72.5 | 46 | 17 |
| S1KT-42-24SP | M42X1.5 | R1.1/2＂X11 | 36 | 25 | 77.5 | 50 | 10.5 |
