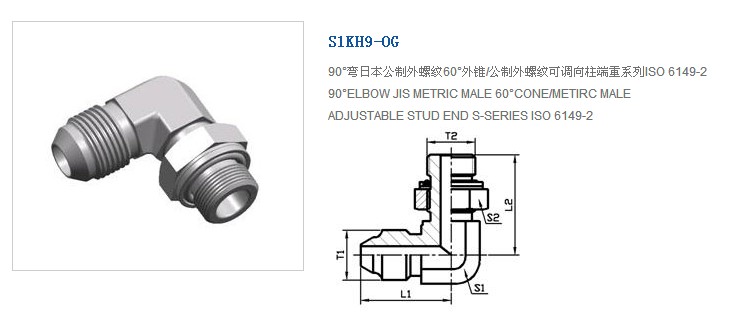

| 代号RAPT NO. | 螺纹 ETHREAD | 尺寸 DIMENSIONS | 工作压力MPa | |||
|---|---|---|---|---|---|---|
| T1 | T2 | L1 | L2 | S1 | ||
| S1KH9-14-12OG | M14X1.5 | M12X1.5 | 26.5 | 31 | 14 | 34.5 |
| S1KH9-14OG | M14X1.5 | M14X1.5 | 26.5 | 31 | 14 | |
| S1KH9-16-14OG | M16X1.5 | M14X1.5 | 29.5 | 31 | 16 | |
| S1KH9-18-14OG | M18X1.5 | M14X1.5 | 30.8 | 33.5 | 19 | |
| S1KH9-18-16OG | M18X1.5 | M16X1.5 | 30.8 | 33.5 | 19 | |
| S1KH9-18-20OG | M18X1.5 | M20X1.5 | 30.8 | 41.5 | 19 | |
| S1KH9-20-18OG | M20X1.5 | M18X1.5 | 33 | 37.5 | 19 | |
| S1KH9-22-20OG | M22X1.5 | M20X1.5 | 35 | 41.5 | 22 | |
| S1KH9-24-20OG | M24X1.5 | M20X1.5 | 37 | 41.5 | 24 | 27.5 |
| S1KH9-24-22OG | M24X1.5 | M22X1.5 | 37 | 41.5 | 24 | |
| S1KH9-30-27OG | M30X1.5 | M27X2 | 45 | 48.5 | 30 | 20.5 |
| S1KH9-33OG | M33X1.5 | M33X2 | 50 | 51.5 | 33 | |
| S1KH9-36-33OG | M36X1.5 | M33X2 | 57 | 51.5 | 36 | 17 |
